Midterm Study Notes

Streams

Streams are sequences of bytes used for input and output.

Input: Data flows from a device (keyboard, disk, network, etc.) into main memory.
Output: Data flows from main memory to a device (screen, printer, disk, network, etc.).

At program start, three standard streams are available (which can be redirected to other devices or files):

Standard input (stdin) – usually from the keyboard.
Standard output (stdout) – usually to the screen.
Standard error (stderr) – also to the screen, for error messages.

printf

Conversion Specifiers

printf uses conversion specifiers to determine how data is formatted when printed. Each specifier begins with % followed by one or more characters describing type and formatting.

Specifier	Description	Example Output
Integers
`%d`, `%i`	Signed decimal integer	`printf("%d", 42)` → `42`
`%u`	Unsigned decimal integer	`printf("%u", 42)` → `42`
`%o`	Unsigned octal integer	`printf("%o", 10)` → `12`
`%x`, `%X`	Unsigned hexadecimal integer (`a–f` or `A–F`)	`printf("%x", 255)` → `ff`
Floating-point
`%f`*	Floating-point decimal (fixed)	`printf("%f", 3.1416)` → `3.141600`
`%e`, `%E`*	Floating-point in scientific notation	`printf("%e", 1234.56)` → `1.234560e+03`
`%g`, `%G`**	Floating-point (shortest of `%f` or `%e`)	`printf("%g", 0.0000123)` → `1.23e-05`
* default 6 digits of precision after decimal
** 6 significant digits (including before decimal)
Characters & Strings
`%c`	Single character	`printf("%c", 'A')` → `A`
`%s`	String of characters	`printf("%s", "Hello")` → `Hello`
Miscellaneous
`%p`	Pointer displayed in an implementation defined manner	`printf("%p", ptr)` → `0x7ffeefbff5ac`
`%%`	Prints a literal percent sign	`printf("%%")` → `%`

When to Use `%g`

The %g (or %G) specifier automatically chooses between fixed-point (%f) and scientific (%e) notation depending on the value’s magnitude and precision:

If the exponent is less than -4 or greater than or equal to the precision, %e format is used.
Otherwise, %f format is used.
Trailing zeros are removed, and no unnecessary decimal point is shown.

printf("%g", 0.0000123); // → 1.23e-05
printf("%g", 123.456);   // → 123.456
printf("%g", 100.0);     // → 100

Use %g when you want concise output without manually deciding between scientific and decimal notation.

Field Widths

A field width specifies the minimum number of characters to print. If the value is shorter, it is left-padded with spaces by default (making the text right-aligned).

printf("%5d", 12);         // "   12" (left-padded with 3 spaces)
printf("%-5d", 12);        // "12   " (right-padded with 3 spaces)
printf("%5d\n", 123456);   // "123456" (wider than specifier, prints fully)

Field widths can also apply to floating-point values:

printf("%0.2f", 3.14); // "    3.14"

The number before the decimal controls total width.
The number after the decimal controls precision.

Flags

Flags modify alignment, padding, and sign display in formatted output.

Flag	Meaning	Example
`-`	Left-justify within the field	`printf("%-5d", 42)` → `42`
`+`	Always print a sign (`+` or `-`)	`printf("%+d", 42)` → `+42`
space	Prefix positive numbers with a space	`printf("% d", 42)` → `42`
`0`	Pad numeric output with leading zeros	`printf("%05d", 42)` → `00042`
`#`	Force alternate form (e.g., add `0x` for hex, decimal point for floats)	`printf("%#x", 255)` → `0xff`

scanf

Conversion Specifiers

Specifier	Description
Integers
`%d`	Reads a signed decimal integer `int*`
`%i`	Reads signed decimal, octal, or hexadecimal `int*`
`%o`	Reads an octal integer `unsigned int*`
`%u`	Reads an unsigned decimal integer `unsigned int*`
`%x` / `%X`	Reads a hexadecimal integer `unsigned int*`
`h`, `l`, `ll`	Length modifiers (`short`, `long`, `long long`) for integers
Floating-point
`%e`, `%E`, `%f`, `%F`, `%g`, `%G`	Reads a floating-point value `float` / `double`
`l` or `L`	Length modifiers for `double` or `long double`
Characters & Strings
`%c`	Reads a single character `char*` (no `\0` added)
`%s`	Reads a string `char[]` (terminates with `\0`)
Scan set
`%[...]`	Reads a set of characters into a string
Miscellaneous
`%p`	Reads an address (pointer format)
`%n`	Stores number of characters read so far `int*`
`%%`	Skips a literal `%` in input

Scan Sets and Inverted Scan Sets

Scan sets allow scanf to read a group of characters that match a specified set. They are defined using %[ ... ].

%[characters] → reads only the characters listed.
%[^characters] → reads everything except the characters listed.
Useful for reading structured data such as comma- or space-separated values.

char word[20];
scanf("%19[A-Za-z]", word);   // reads only letters

char untilComma[30];
scanf("%29[^,]", untilComma);  // reads everything up to the next comma

Notes:

scanf automatically adds a null terminator ('\0') at the end.
To include ] in the scanset, place it first inside the brackets: %[]A-Z].
To include -, place it at the start or end of the set: %[-A-Z].

Field Widths

Field widths define how many characters scanf will read for a given conversion. This prevents buffer overflows and controls input precision.

char name[11];
scanf("%10s", name);   // reads at most 10 chars, leaves space for null terminator

int year, month, day;
scanf("%4d%2d%2d", &year, &month, &day);
// Input: 20251028 → year=2025, month=10, day=28

Skipping Characters and Assignment Suppression

The assignment suppression character (*) allows scanf to skip matched input without storing it.

Any literal in the format string must appear in the input and will be consumed.
Whitespace in the format matches any amount of whitespace in the input.

// Skip a single character (like '-') between numbers
int year, month, day;
scanf("%d%*c%d%*c%d", &year, &month, &day);

// Skip entire field before comma
char name[20];
scanf("%*[^,],%19s", name);

Formatted I/O Variants

Function	Purpose	Typical Use Case
`fprintf(FILE fp, const char format, ...)`	Prints formatted output to a file stream.	Writing data to files.
`fscanf(FILE fp, const char format, ...)`	Reads formatted input from a file stream.	Reading structured file input.
`sprintf(char str, const char format, ...)`	Writes formatted output into a string buffer.	Building formatted strings in memory.
`sscanf(const char str, const char format, ...)`	Reads formatted input from a string.	Parsing string data (e.g., CSV fields).

Formatted I/O Variant Use

These functions behave like printf and scanf, but redirect input/output to files or strings instead of the console.

Literals and Escape Sequences

Characters in a format string that are not part of a conversion specification are printed literally.

Escape sequences allow you to include special characters in strings that cannot be typed directly or would otherwise be ambiguous.

Escape	Description
`\'`	Single quote (`'`)
`\"`	Double quote (`"`)
`\?`	Question mark (`?`)
`\\`	Backslash (`\\`)
`\a`	Alert (bell/flash)
`\b`	Backspace
`\f`	Form feed (new page)
`\n`	Newline
`\r`	Carriage return (does *not* move to beginning of next line)
`\t`	Horizontal tab
`\v`	Vertical tab
`%%`	Percent symbol (`%`)

Recursion

Recursion occurs when a function calls itself directly or indirectly. Each call creates a new stack frame until a base case is reached, after which calls resolve in reverse order.

Base Case: The simplest form of the problem that can be solved directly.
Recursive Case: Reduces the problem toward the base case.
Recursion always requires progress toward termination to prevent infinite loops.

int factorial(int n)
{
    if (n == 0)  // base case
        return 1;
    else          // recursive case
        return n * factorial(n - 1);
}

For factorial(3) → calls unfold as 3 * factorial(2) → 2 * factorial(1) → 1 * factorial(0).
Base case returns 1, then each call multiplies by the previous n until the result is complete.

Structures

A structure groups related variables under one name. The C standard calls them aggregates. Defined using the struct keyword:

struct card {
    const char *face;
    const char *suit;
};

Semicolon is required after the closing brace. Members can be of different types, but a structure cannot directly contain an instance of itself—only a pointer to its own type.

struct card {
    const char *face;
    const char *suit;
    struct card *nextCard;  // Valid
};

Defining Variables of Structure Types

Defining a structure creates a type, not a variable. Variables are declared afterward:

struct card myCard;
struct card deck[52];
struct card *cardPtr;

You can also define variables inline with the structure:

struct card {
    const char *face;
    const char *suit;
} myCard, deck[52], *cardPtr;

Initializing Structures

// array-like member initializer lists
struct card K = {"king", "clubs"};

// assigning values to individual data members
struct card Q;
Q.face = "queen";
Q.suit = "spades";

// assignment statements (setting one variable to equal another of the same struct)
struct card A = {"Ace", "Hearts"};
struct card B;

B = A;   // assignment statement

Accessing Members of a Structure

You can access members of a structure using the structure member operator: .

struct card K = {"king", "clubs"};`
char *Kface = K.face;

If you are referring to the structure through a pointer, you can use the structure arrow operator to access the members.

struct card *KPtr = &K;
char *Kface = K->face;

// Alternatively you can also use the following dereference and dot syntax
char *Ksuit = (*KPtr).suit; // note the paranthesis are *required* here.

Structures Without Tag Names

Anonymous structs can be declared if variables are defined immediately:

struct {
    int x;
    int y;
} point1, point2;

Without a tag, you can’t reuse the type elsewhere.

Comparing Structure Objects

Structures cannot be compared with == or != because compilers insert padding bytes for memory alignment, which may hold unspecified garbage values.

Even identical structures might differ in padding, making bytewise comparison undefined behaviour.

With that said, they could sometimes compare equally (although as noted it is undefined behaviour and can't be relied on).

Using `sizeof` with Structures

sizeof(struct_name) gives the memory occupied by a structure, including padding.

struct example {
    char c;
    int i;
};

printf("%zu\n", sizeof(struct example)); // Likely prints 8, not 5

Passing Structures and Arrays

Array of structures: passed by reference (decays to a pointer), just like any other array.

The function can modify the original elements.

Array member inside a structure: passed by value when the structure itself is passed by value.

The function receives a copy; modifying it won’t affect the original.

typedef

typedef creates an alias for a type, making code more concise and readable.

typedef struct card Card;
Card newCard;

Combining `typedef` with `struct`

You can combine both in one declaration:

typedef struct {
    const char *face;
    const char *suit;
} Card;

Warning

Do not declare variables in the same line when using this form. If you need variables too, use a standard struct definition followed by a separate typedef.

Unions

A union is a derived data type similar to a struct, but unlike structures, all members share the same memory space. Only one member can be used at a time, making unions memory-efficient when variables are only relevant at different times during execution.

union number {
    int x;
    double y;
};

Defining a union creates a new type but does not allocate memory until a variable is declared.

The size of a union equals the size of its largest member.
Accessing a member different from the one last assigned leads to undefined behavior.
Unions save space but require careful type management.

Initializing a Union

A union can be initialized only through its first member:

union number value = {10}; // assigns 10 to x

Warning

If initialized with a value meant for another member, it will be converted to the first member’s type:

union number value = {1.43}; // assigns 1 to x instead of 1.43 to y

Bitwise Operators

Bitwise operations work directly on the binary representation of integer types such as short, int, and long (and their unsigned variants). Each bit in a value represents a power of two.

Operators

AND & Sets a bit to 1 only if both bits are 1.

// 1101 (13)
// 1011 (11)
// ----
// 1001 (9)

OR | Sets a bit to 1 if either bit is 1.

// 1101 (13)
// 1011 (11)
// ----
// 1111 (15)

XOR ^ Sets a bit to 1 if bits differ.

// 1101 (13)
// 1011 (11)
// ----
// 0110 (6)

NOT ~ Inverts each bit.
```
// 0101 (5)
// ~
// ----
// 1010 (10)
```
shown as 4 bits
Left shift << Moves bits left (fills with 0).
```
// 0101 (5)
// << 1
// ----
// 1010 (10)
```
Each shift multiplies by 2.
Right shift >> Moves bits right (fills with 0).
```
// 1010 (10)
// >> 1
// ----
//0101 (5)
```
Each shift divides by 2.

Note on shifts: Right-shift of signed negative values is implementation-defined; use unsigned integers where possible.

Common bit manipulation patterns

Even/odd: x & 1

if (x & 1) puts("Odd"); else puts("Even");

Swap without temp (XOR-swap):

a ^= b; b ^= a; a ^= b;

Power of two (exactly one bit set):

if (x > 0 && (x & (x - 1)) == 0) puts("Power of 2");

Count set bits (Kernighan):

int c = 0; for (; x; ++c) x &= (x - 1);

Set / clear / toggle bit n:

x |=  (1u << n);   // set
x &= ~(1u << n);   // clear
x ^=  (1u << n);   // toggle

Lowest set bit:

unsigned lowest = x & -x;

Opposite signs:

if ((x ^ y) < 0) puts("Opposite signs");

Enums

An enumeration is a user-defined type consisting of a set of named integer constants.
Identifiers must be unique, but they can share the same constant value.

enum Day { MON, TUE, WED, THU, FRI, SAT, SUN }; // identifiers (MON–SUN) map to constants 0–6
enum Day today = WED; // WED corresponds to 2

// You can also specify constant values in the definition
enum SomeDays { MON = 1, TUE = 3, WED = 1 }; // WED shares the same value as MON

// You **cannot** assign to enum constants after definition
WED = 4;  // <- ERROR: enumeration constants are read-only (compile-time error)

Self-Referential Structures

Structures can include pointers to their own type, enabling dynamic data structures.

struct node { int data; struct node *nextPtr; };

Used for linked lists, stacks, and trees.

Linked Lists

Linear collection of nodes connected by pointers.

Each node contains data and a pointer to the next node.
The head pointer references the first node; the last node’s pointer is NULL.

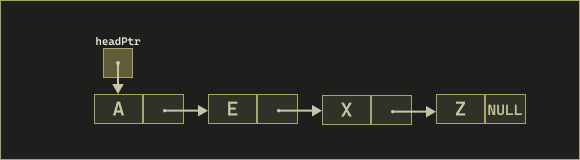

Basic Linked List

Traversals

Move through nodes one by one until NULL:

Start at head → process data → move to nextPtr → repeat.

Insertions (two cases)

1. Unsorted Insertion (at the beginning)
1. Allocate memory for a new node and create a newPtr.
2. Assign the desired value to its data field.
3. Link the new node to the existing list by setting newPtr->nextPtr = head;
4. Update the head pointer so it points to the new node: head = newPtr;
2. Sorted Insertion (maintaining order)
1. Allocate and initialize the new node.
2. Set previousPtr = NULL and currentPtr = head.
  - previousPtr will always lag one node behind currentPtr
3. Traverse/walk the links until you find the spot.
  - previousPtr = currentPtr
  - currentPtr = currentPtr->nextPtr
4. If previousPtr == NULL, insert at the start (new head). Otherwise, insert between previousPtr and currentPtr.
  - previousPtr->nextPtr = newPtr;
  - newPtr->nextPtr = currentPtr;

Deletions (two cases)

1. Delete the First Node
1. Store the current head in a temporary pointer.
2. Move head to head->nextPtr.
3. Free the temporary node.
2. Delete from Middle or End
1. Use previousPtr and currentPtr to traverse until the node to delete is found.
2. Update previousPtr->nextPtr to currentPtr->nextPtr.
3. Free the deleted node.

Utility Operations

isEmpty: return head == NULL.
printList: traverse and print each node’s data until NULL.

Stacks

A stack is a linear data structure that follows the Last-In, First-Out (LIFO) principle. The most recently added element is removed first.

Insertion and deletion occur only at the top of the stack.
Implemented using linked lists or arrays.
The stack pointer (topPtr) tracks the current top node.

Operation	Description
push()	Insert an element at the top.
pop()	Remove the top element and return its value.
isEmpty()	Check if the stack is empty.

struct stackNode {
    int data;
    struct stackNode *nextPtr;
};

Queues

A queue is a linear data structure that follows the First-In, First-Out (FIFO) principle. The first element added is the first one removed.

Insertion occurs at the rear; deletion occurs at the front.
Implemented using linked lists.

Two pointers are used:

frontPtr → points to the first node
rearPtr → points to the last node

Operation	Description
enqueue()	Add a new element to the rear.
dequeue()	Remove an element from the front.
isEmpty()	Check if the queue is empty.

struct queueNode {
    int data;
    struct queueNode *nextPtr;
};

Trees

Non-linear hierarchical data structure consisting of nodes connected by edges.

Each node may have two or more children.

Binary Trees

A type of tree where each node has at most two children (left, right).

The root is the topmost node; leaf nodes have no children.

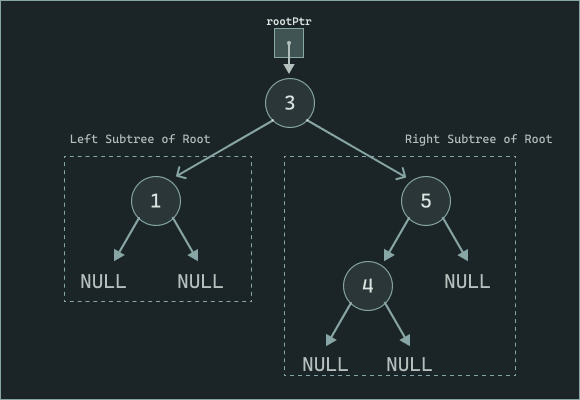

Basic Tree Structure

Binary Search Tree (BST)

Special binary tree where:

Left subtree value < Root value < Right subtree value.
Enables fast searching, insertion, and deletion.

Tree Traversals

Type	Visit Order	Common Use
Preorder	Root → Left → Right	Copying the tree
Inorder	Left → Root → Right	Produces sorted output
Postorder	Left → Right → Root	Deletion or cleanup

Pointer-to-Pointer

When a function needs to modify a pointer (such as a tree’s root or a linked list’s head), it must receive the address of that pointer. This allows the function to update the caller’s pointer directly.

void insertNode(TreeNodePtr *treePtr, int value)
{
    if (*treePtr == NULL) {
        *treePtr = malloc(sizeof **treePtr);
        (*treePtr)->data = value;
        (*treePtr)->leftPtr = NULL;
        (*treePtr)->rightPtr = NULL;
    }
    else if (value < (*treePtr)->data)
        insertNode(&((*treePtr)->leftPtr), value);  // pass address of left child
    else if (value > (*treePtr)->data)
        insertNode(&((*treePtr)->rightPtr), value); // pass address of right child
}

treePtr is a pointer to a pointer (TreeNode **).
*treePtr gives the actual node pointer (e.g., the root or a child link).
&((*treePtr)->leftPtr) passes the address of the child pointer, allowing recursion to modify that link directly.

Use (*ptr)->member instead of confusing forms like *(*ptr).member. Parentheses ensure the dereference applies to the pointer, not the struct member.

Midterm Study Notes

Streams

printf

Conversion Specifiers

When to Use %g

Field Widths

Flags

scanf

Conversion Specifiers

Scan Sets and Inverted Scan Sets

Field Widths

Skipping Characters and Assignment Suppression

Formatted I/O Variants

Literals and Escape Sequences

Recursion

Structures

Defining Variables of Structure Types

Initializing Structures

Accessing Members of a Structure

Structures Without Tag Names

Comparing Structure Objects

Using sizeof with Structures

Passing Structures and Arrays

typedef

Combining typedef with struct

Unions

Initializing a Union

Bitwise Operators

Enums

Self-Referential Structures

Linked Lists

1. Unsorted Insertion (at the beginning)

2. Sorted Insertion (maintaining order)

1. Delete the First Node

2. Delete from Middle or End

Utility Operations

Stacks

Queues

Trees

Binary Trees

Binary Search Tree (BST)

Tree Traversals

Pointer-to-Pointer

When to Use `%g`

Using `sizeof` with Structures

Combining `typedef` with `struct`
